The Rifle tab

Goal of this article: describe the sight and the barrel so that the geometry is right, the clicks in the table are your clicks, and spin drift and aerodynamic jump can be computed at all.

Two groups, separated by a line: the sight above the bore, and the barrel that spins the bullet. Neither is about zeroing — the zero distance lives on its own tab.

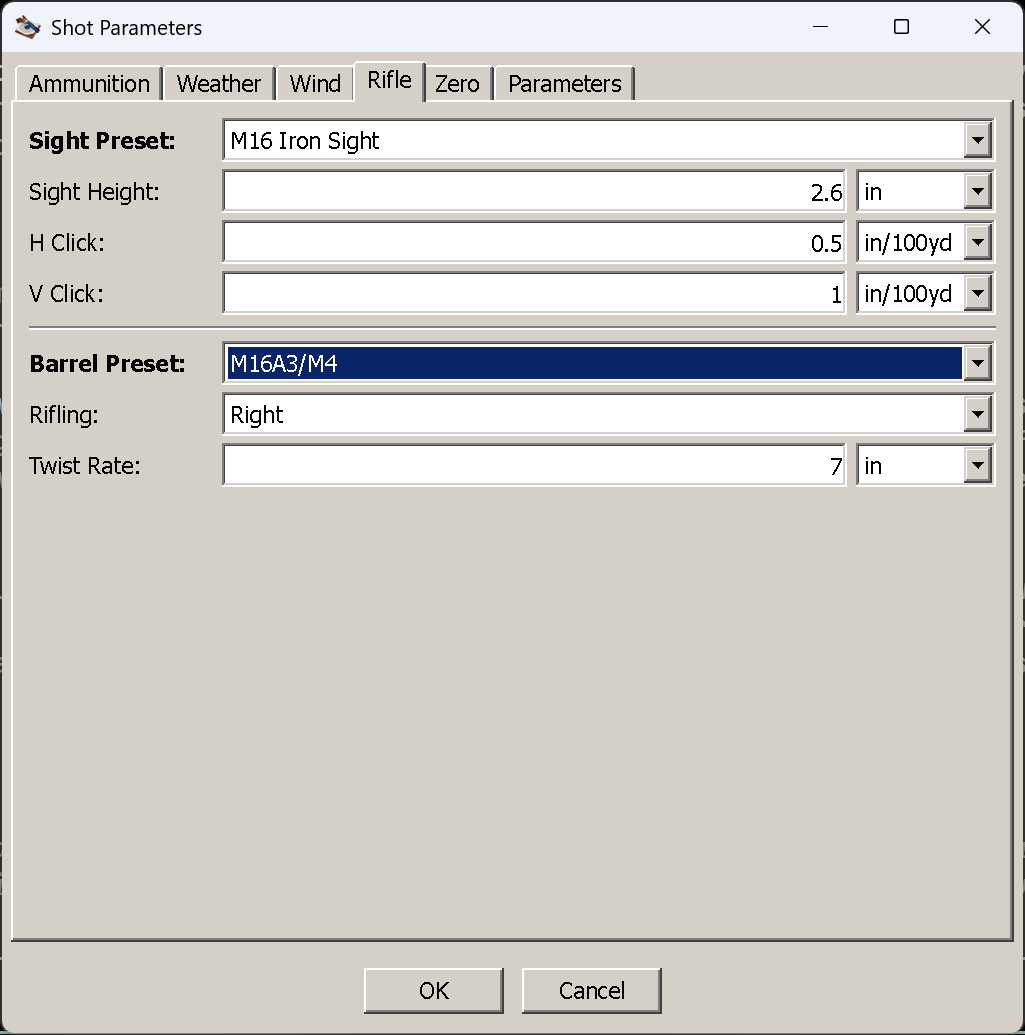

A preset chosen for the sight, another for the barrel.

The fields

Field	Imperial	Metric	What it is
Sight Preset	—	—	A named sight from the dictionary; fills the three fields below
Sight Height	inch	mm	Height of the line of sight above the bore. The one field this tab cannot do without
H Click	angular	angular	Windage per click of your turret. Optional
V Click	angular	angular	Elevation per click. Optional
Barrel Preset	—	—	A named barrel from the dictionary; fills the two fields below
Rifling	—	—	Twist direction: Not Set, Left or Right
Twist Rate	inch	mm	The distance the bullet travels in one full turn. Disabled until a direction is chosen

Click values are angular and not tied to the measurement system — a metric shooter with an MOA scope is perfectly normal. The boxes default to mils, and the unit dropdown beside each takes whatever your turret is marked in: 0.1 mil, 0.25 moa, 0.5 in/100yd.

Sight height, and why it is not a detail

The sight sits above the bore, so the line of sight and the barrel are two different lines that cross. Everything about the shape of a trajectory relative to your crosshair follows from that: the bullet starts below the line of sight, rises through it at the near zero, arcs above it, and comes back down through it at the zero distance you asked for. A taller sight makes the barrel point further up to reach the same zero, which moves the near zero out and raises the mid-range arc.

Measure it from the centre of the bore to the centre of the scope tube — not to the top of the turret, and not to the bottom of the objective. On an AR-pattern rifle it is around 2.6 in; on a bolt gun with a normal mount, 1.5 to 1.8 in.

It is also the one field on this tab you cannot leave out. Enter click values without a sight height and OK reports “Not all required data filled in: Rifle” — the sight has no geometry without it. Leave the whole tab alone and the default is a 3 in sight height with no clicks and no rifling.

Presets, and where they come from

The two preset dropdowns read data/dictionaries.xml, the file that ships beside the application. Choosing a sight fills the height and both click values; choosing a barrel fills the direction and twist rate. The shipped list covers common service and sporting rifles — M16A3/M4 at 1:7 in, AK-74 at 200 mm, Standard Optics (High, Mil) at 3 in with 0.1 mil clicks, EOTech@M4 at 2.6 in, and so on.

Three behaviours worth knowing:

• A sight preset can also set your zero distance. Most shipped sights carry a default zero (25 yd for the .22LR entries, 100 yd for the rest), and selecting one writes it straight into the Zero tab — overwriting whatever was there. So pick the sight preset first, then set your zero distance, not the other way round.
• Editing a field does not fight the dropdown. The combo falls back to (select) only once a value no longer matches the preset it came from, so a preset stays named while it is still true and stops claiming credit as soon as you change something.
• You can add your own. Tools → Edit Sights… and Tools → Edit Barrels… edit the same dictionary and save it to user-dictionaries.xml, beside the executable. Worth doing once for each rifle you actually shoot — and an update cannot overwrite it, though it will add any new presets a release brings (see Updating the application).

Click values buy you two things

They are optional, and the trajectory is identical without them — but:

• The two Clicks columns in the table convert the elevation and windage corrections into turret clicks. Without click values, both columns read n/a; the corrections themselves are still there in the adjustment columns, in whatever angular unit you chose under View → Angular Units.
• Dialled clicks on the Parameters tab. If you have already cranked 12 clicks of elevation onto the turret, that tab takes the count and needs the click size to turn it into an angle.

Enter them separately for H and V because some scopes genuinely differ, and because a windage turret and an elevation turret can be marked in different steps.

Note that click size and View → Angular Units are unrelated. The angular unit decides how holds and corrections are displayed; the click size describes your hardware. A metric shooter with 0.25 MOA turrets reading holds in mils is a perfectly coherent setup.

The barrel: what the twist actually buys

The rifling group is what makes two correction terms computable:

• Spin drift — a spin-stabilised bullet drifts sideways in the direction of its spin, growing with roughly the 1.8th power of time of flight. That exponent is the important part: it is nothing you could measure at 100, and inches at 1,000.
• Crosswind aerodynamic jump — a vertical shift imparted at the muzzle by a crosswind, whose size depends on the bullet’s stability and length in calibres.

Both need three things, and it is the combination people miss: the twist (here), plus the bullet’s diameter and length (on the Ammunition tab). Leave any one of them out and both terms are silently absent — no warning, just a different trajectory. The windage column then contains wind and nothing else.

Direction is not cosmetic. A right-hand twist drifts the bullet right, a left-hand twist drifts it left, and the same sign flips the direction of aerodynamic jump. Since the windage column carries wind and spin drift together, the two can partly cancel: a right-twist rifle in a wind coming from your right is being pushed left by the air and right by the spin, and at some distance those are equal.

Twist rate is entered as the distance for one full turn — a 1:7 in barrel is 7 in, an AK-74 is 200 mm. Smaller number, faster twist. The Twist Rate box stays greyed out until you pick a direction, because a twist rate with no direction cannot say which way the bullet drifts; leaving Rifling at Not Set is how you say “I do not know the twist”, and it is the honest answer if you do not.

Things that catch people out

• Clicks entered, sight height forgotten. The tab is rejected, and the message names the tab rather than the field.
• A sight preset chosen after the zero distance. It overwrites the zero.
• Twist entered, bullet dimensions not. Spin drift and aerodynamic jump still do not happen; the twist alone is not enough.
• Sight height measured to the wrong place. Centre of bore to centre of tube.
• Expecting the Clicks columns to work without click values. They read n/a; that is the field asking to be filled in.
• A custom dictionary lost on upgrade. data/dictionaries.xml is shipped, so a fresh archive replaces it.

Next

The Zero tab — zero distance, impact offset, and zeroing with a different cartridge, atmosphere or wind than the shot.

---
